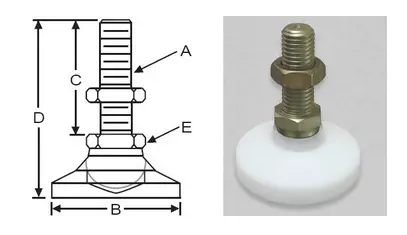

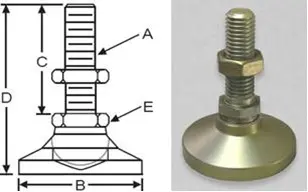

Steel Level-It™ Stud Style, Metric

Name: Superior Components, Inc.
Address: 12409 S Industrial Dr E, Plainfield, 60585
Telephone: (815) 254-2313
Price range: $$
Rating: 4.5

Click image to enlarge

Steel P/N	303 Stainless P/N	316 Stainless P/N	Thread (A)	Base Dia (B)	Thread Length (C)	Total Height (D)	Max Load (kg)	Hex Size (E)	Ship Wt (lbs)
MB-SW00	MS-SW00	MS-SW00-316	M6	19	25	38	315	10	0.04
MB-SW0	MS-SW0	MS-SW0-316	M8	25	32	49	450	12	0.10
MB-SW1	MS-SW1	MS-SW1-316	M10	32	51	73	1700	16	0.22
MB-SW2	MS-SW2	MS-SW2-316	M12	48	51	79	2250	20	0.48
MB-SW3	MS-SW3	MS-SW3-316	M16	64	51	83	2700	22	1.06
MB-SW4	MS-SW4	MS-SW4-316	M20	76	51	89	3350	27	1.70
MB-SW5	MS-SW5	MS-SW5-316	M24	102	89	137	9000	35	3.54
MB-SW5EL	MS-SW5EL	MS-SW5EL-316	M24	102	108	156	9000	35	3.70
MB-SW6	MS-SW6	MS-SW6-316	M30	152	102	172	19500	48	10.40
MB-SW6EL	MS-SW6EL	MS-SW6EL-316	M30	152	152	222	19500	48	10.91
