Steel PolyMount™ 5” Dia Base Stud Style, Metric

Name: Superior Components, Inc.
Address: 12409 S Industrial Dr E, Plainfield, 60585
Telephone: (815) 254-2313
Price range: $$
Rating: 4.5

Click image to enlarge

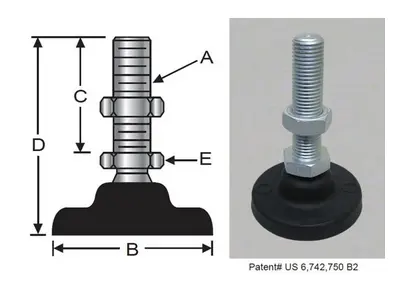

Steel P/N	Stainless P/N	Thread (A)	Base Dia (B)	Thread Length (C)	Total Height (D)	Max Load (kg)	Hex Size (E)	Ship Wt (lbs)
BMNYLC54	BSMNYLC54	M16	127	102	159	4545	27	1.12
BMNYLC56	BSMNYLC56	M16	127	152	210	4545	27	1.26
BMNYLC58	BSMNYLC58	M16	127	203	260	4545	27	1.40
BMNYLC510	BSMNYLC510	M16	127	254	311	4545	27	1.63
BMNYLD54	BSMNYLD54	M20	127	102	159	4545	27	1.22
BMNYLD56	BSMNYLD56	M20	127	152	210	4545	27	1.39
BMNYLD58	BSMNYLD58	M20	127	203	260	4545	27	1.56
BMNYLD510	BSMNYLD510	M20	127	254	311	4545	27	1.70
BMNYLE54	BSMNYLE54	M24	127	102	159	4545	35	1.66
BMNYLE56	BSMNYLE56	M24	127	152	210	4545	35	1.83
BMNYLE58	BSMNYLE58	M24	127	203	260	4545	35	2.00
BMNYLE510	BSMNYLE510	M24	127	254	311	4545	35	2.17
BMNYLF54	BSMNYLF54	M30	127	102	159	4545	35	2.20
BMNYLF56	BSMNYLF56	M30	127	152	210	4545	35	2.37
BMNYLF58	BSMNYLF58	M30	127	203	260	4545	35	2.54
BMNYLF510	BSMNYLF510	M30	127	254	311	4545	35	1.71
